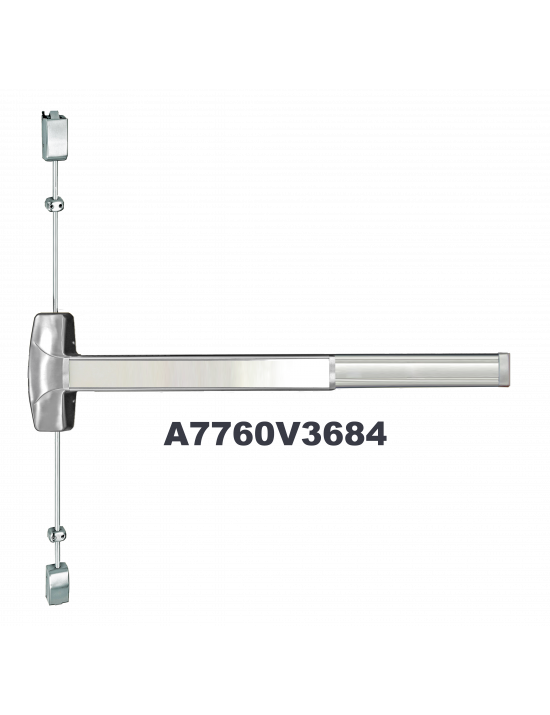

A7760V & AF7760V Vertical Rod Panic and Fire Exit Devices (ADA)

•ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
•Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
•Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
•Trims are thru bolted for additional security.
•Conforms & Meets ADA Regulations.
•Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
•UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
•UL Listed for Fire Exit Hardware. 3 hours.
•(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
•Uncompromising security and safety in single and double fire exit doors.
•Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
•Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.

No attributes available for this product.

Finish	Architectural plated finishes
Size	DIMENSIONS Touch bar height to finished floor 41” (1041 mm) at center Touch bar projection Neutral 3 ⅝” (92 mm) Depressed 2 ⅞” (73 mm) Center case 8 1/16” x 2 ¾” x 2 ½” (205 mm x 68 mm x 62 mm) Panic grade top & bottom latch case 3 15/16” x 2 ⅛” x 1 ⅜” (100 mm x 52 mm x 42 mm) Fire grade top latch case 3 15/16” x 2 9/16” x 2 1/16” (100 mm x 68 mm x 53 mm) Fire grade bottom latch case 3 15/16” x 2 ⅛” x 1 ⅜” (100 mm x 52 mm x 42 mm) Top and bottom rod length for 36” x 84” doors: Top rod 37 ½” (955 mm), bottom rod 35 ⅝” (905 mm) Top and bottom rod length for 48” x 96” doors: Top rod 49 ⅝” (1260 mm), bottom rod 35 ⅝” (905 mm) Vertical rods ½” (13 mm) round tubing MODEL ACTUAL SIZE MAXIMUM CUT DOWN DOOR SIZE A7760V3684, AF7760V3684, A7790V3696, AF7790V3696, A7750V36120, AF7750V36120 – 32” actual, 6” max cut down, 30” to 36” door width A7780V4896, AF7780V4896, A7740V48120, AF7740V48120 – 44” actual, 10” max cut down, 38” to 48” door width
Part Number	A7760V & AF7760V Series
Fire-Rated	UL and ULC Listed – A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
Mounting	Furnished with wood and machine screws. Thru-bolts are included and standard packaging on fire-rated devices
Usage	Vertical Rod Type Exit Device
ANSI/BHMA Standard	ANSI Standard – A156.3, Grade 1
Handing	Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience
Latchbolt	Stainless Steel
ADA Compliance	Americans with Disability Act (ADA) compliant. 5lbs opening force on ADA product only
Dogging Feature	Allen-type key furnished standard on non-fire labeled devices
Mechanism Case	Top Chassis – Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade). Cover – Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out
Warranty	Lifetime Warranty
