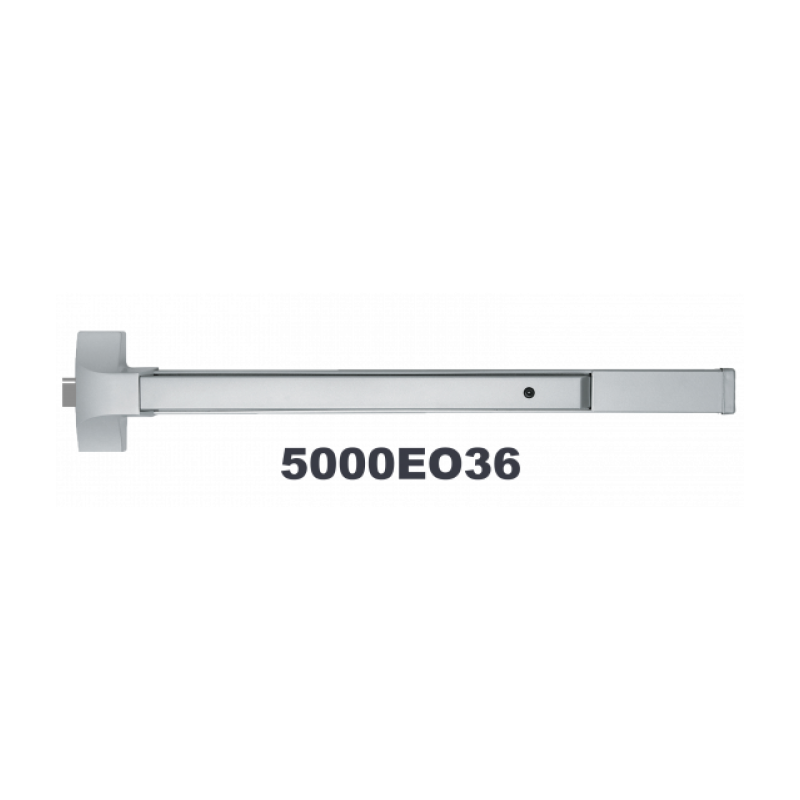

5000 & F5000 Rim Type Panic And Fire Exit Devices ANSI A156.3, Grade 1
•ANSI A156.3, GRADE 1 Heavy Duty Rim Exit Device
•UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
•UL Listed for Fire Exit Hardware. 3 hours.
•(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
•Chassis mounted unit construction.
•Available in standard functions. Lever and knob trims have an optional clutch freewheeling mechanism. Rose covers 161 cut out.
| Finish | Aluminum (Alum), Stainless Steel (US32D) |
|---|
| Finish | Aluminum (ALUM), Stainless Steel (US32D) |
|---|---|
| Size | Touchbar height to finished floor 41” (1041 mm) at center
Touchbar projection |
| Part Number | 5000 & F5000 Series |
| Fire-Rated | ANSI A156.3, GRADE 1 Heavy Duty Rim Exit Device. UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours. |
| Mounting | Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru bolts are standard packaging on fire-rated devices. |
| Usage | GRADE 1 Vertical Rod Type Exit Device |
| ANSI/BHMA Standard | ANSI A156.3, Grade 1 Heavy Duty Exit Device in Rim design |
| Handing | Non-Handed, center hub. |
| Latchbolt | Stainless steel ¾” throw |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. |
