ANSI GRADE 2, STANDARD DUTY
CYLINDRICAL LEVERSETS, NON CLUTCH MECHANISM CYLINDRICAL LEVERSET
•BHMA Certified Lifetime Warranty, GRADE 2
•Conforms with ANSI A 156.2 Series 4000, Standard Duty, Barrier Free,
•UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
•Solid brass 6 pin “C” keyway cylinder, optional other keyways
•Optional Interchangeable Core
•Push in and turn button function
•Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
•Optional Tactile and Lead Lining
•Meets the Buy American Act
| Finish | Satin Chrome |
|---|---|
| Function | Classroom Lock, Dummy Lever, Entrance / Office Lock, Exit Lock, Passage Set, Patio, Privacy Lock, Storeroom Lock |
| Finish | Polished Brass, Satin Brass, Antique Brass, Satin Bronze, Oil Rubbed Bronze, Satin Nickel, Satin Chrome, Polished Chrome |
|---|---|

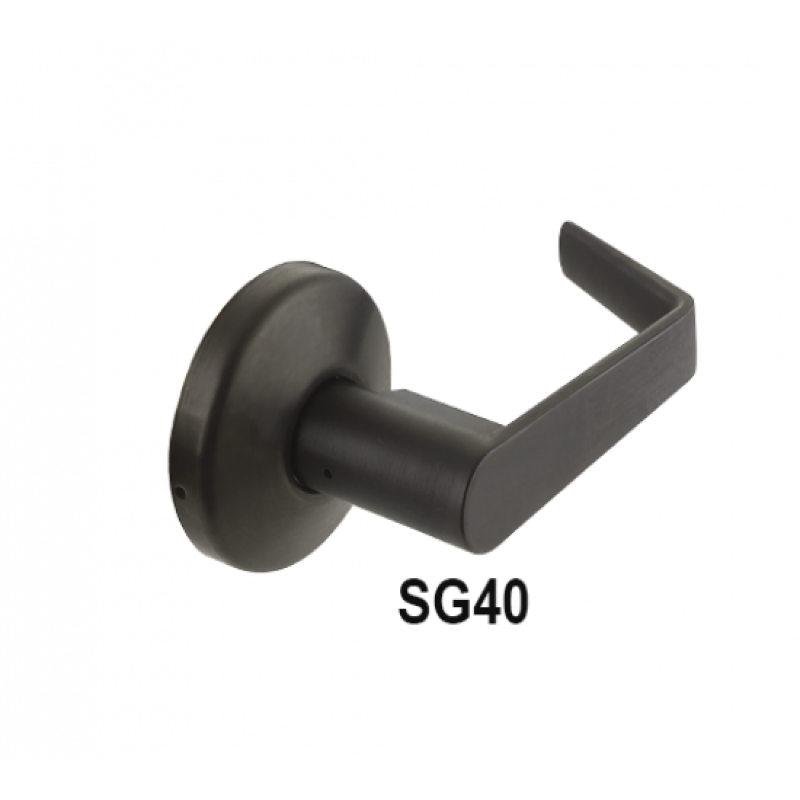

| Part Number | SG40, SG00, MAN DESIGN, DOV DESIGN, ROC DESIGN, AST DESIGN, ROC DESIGN – SQ, SG DESIGN-SQ, MAN DESIGN-SQ, DOV DESIGN-SQ, AST DESIGN-SQ |
| Fire-Rated | UL Listed 3 hour rated , UL10C, UBC7-2-1997 |
| Usage | Lock |
| Device Type | Lock |
| Function | Lock |
| ANSI/BHMA Standard | BHMA Certified Lifetime Warranty, GRADE 2 Conforms with ANSI A 156.2 Series 4000, Standard Duty, Barrier Free |
| Latchbolt | ½” Throw solid brass, reversible for RH or LH applications. UL Listed. |
| Trim | Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish. |
| ADA Compliance | Meets ADA Compliance specifically designed for Barrier Free Application |
| Warranty | Lifetime |
