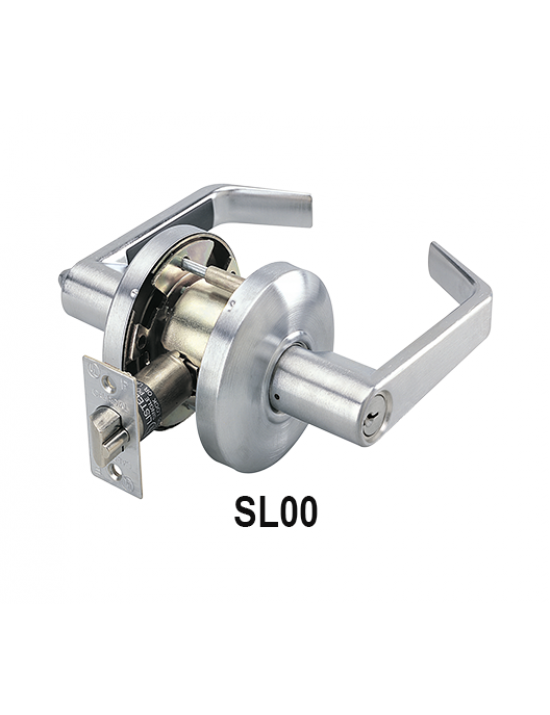

Heavy Duty Cylindrical Leversets, Clutch Mechanism Optional thru Bolt Installation. SL Series (non-clutch mechanism, CSL Series (clutch mechanism)
•BHMA Certified Lifetime Warranty, GRADE 2
•Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
•UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
•Solid brass 6 pin “C” keyway cylinder, optional other keyways
•Optional Interchangeable Core
•Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle
•Optional thru bolt installation
•Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
•Optional Tactile and Lead Lining
•Hurricane Approved Hardware. Florida Building Code FL13922
•Meets the Buy American Act
| Finish | Dark Oxide Satin Bronze, Satiin Nickel, Antique brass, Flat Black Coated, Polished Brass, Polished Chrome, Satin brass, Satin bronze, Satin Chrome |
|---|
| Finish | Flat Black Coated, Polished Brass, Satin Brass, Antique Brass, Satin Bronze, Dark Oxide Satin Bronze, Satiin Nickel, Polished Chrome, Satin Chrome |
|---|---|
| Part Number | SL, AG, RL |
| Fire-Rated | UL Listed 3 hour rated , UL10C, UBC7-2-1997 |
| Usage | Lock |
| Device Type | Lock |
| Function | Lock |
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycle |
| Latchbolt | ½” Throw solid brass, reversible for RH or LH applications. UL Listed. |
| Trim | Wrought brass, bronze, or stainless steel, levers are Zinc ca sting, plated to match trim finish. |
| ADA Compliance | Meets ADA Compliance |
| Warranty | Lifetime |
•BHMA Certified Lifetime Warranty, GRADE 2
•Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
•UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
•Solid brass 6 pin “C” keyway cylinder, optional other keyways
•Optional Interchangeable Core
•Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle
•Optional thru bolt installation
•Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
•Optional Tactile and Lead Lining
•Hurricane Approved Hardware. Florida Building Code FL13922
•Meets the Buy American Act
| Finish | Dark Oxide Satin Bronze, Satiin Nickel, Antique brass, Flat Black Coated, Polished Brass, Polished Chrome, Satin brass, Satin bronze, Satin Chrome |
|---|
| Finish | Flat Black Coated, Polished Brass, Satin Brass, Antique Brass, Satin Bronze, Dark Oxide Satin Bronze, Satiin Nickel, Polished Chrome, Satin Chrome |
|---|---|
| Part Number | SL, AG, RL |
| Fire-Rated | UL Listed 3 hour rated , UL10C, UBC7-2-1997 |
| Usage | Lock |
| Device Type | Lock |
| Function | Lock |
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycle |
| Latchbolt | ½” Throw solid brass, reversible for RH or LH applications. UL Listed. |
| Trim | Wrought brass, bronze, or stainless steel, levers are Zinc ca sting, plated to match trim finish. |
| ADA Compliance | Meets ADA Compliance |
| Warranty | Lifetime |
