ANSI GRADE 2
INTERCONNECTED LEVERSET INTERCONNECTED LOCKS
OPTIONAL 4” or 5 ½” CTC BORE
•Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
•Lifetime Warranty
•UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
•Solid brass 6-Pin “C” keyway cylinder, optional other keyways
•Optional Interchangeable Core
•Optional 4” or 5 ½” CTC Bore
•Unique individual spring on the exterior and interior side of lever to prevent lever sag
•Optional Exterior Escutcheon Plate
•Meets the Buy American Act
| Finish | Oil Rubbed Bronze, Satin Chrome |
|---|---|
| Function | Double Locking Entrance Lever, Double Locking Storeroom Lever, Indicator Db Passage Lever, Single Locking Passage Lever |
| Finish | Flat Black Coated, Polished Brass, Satin Brass, Antique Brass, Oil Rubbed Bronze, Satiin Nickel, Polished Chrome, Satin Chrome |
|---|---|

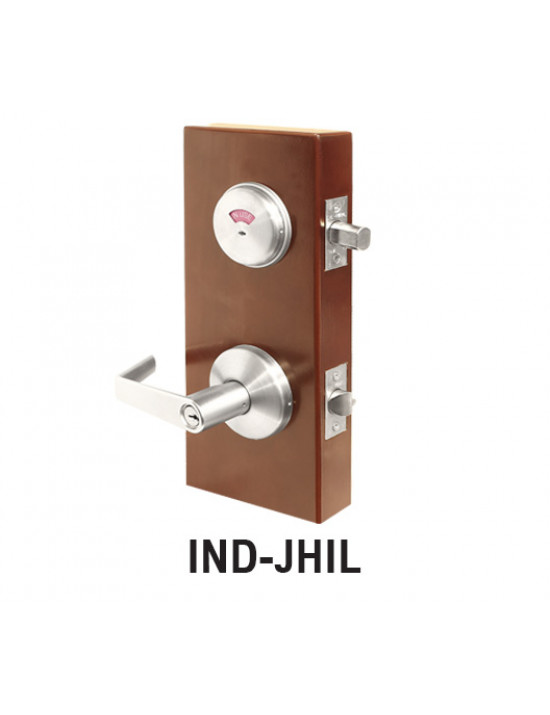

| Part Number | IND-JHIL, ICSCJHIL |
| Fire-Rated | UL Listed 3 hour rated , UL10C, UBC7-2-1997 |
| Usage | Lock |
| Device Type | Lock |
| Function | Lock |
| ANSI/BHMA Standard | Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2, Conforms with ANSI A156.12 Series 5000, Grade 2, Exceeds 400,000 cycles |
| Latchbolt | ½” Throw. UL-Listed for 3 hour doors. 2 ¾” standard backset with 2 ⅜” optional. |
| Trim | HIL, ASTOR, DOVER and MANHATTAN designs. Refer to the picture in front page. Lever length is 4 ¼”. |
| ADA Compliance | Meets ADA requirements Specially designed for Barrier Free Application |
| Warranty | Lifetime |
