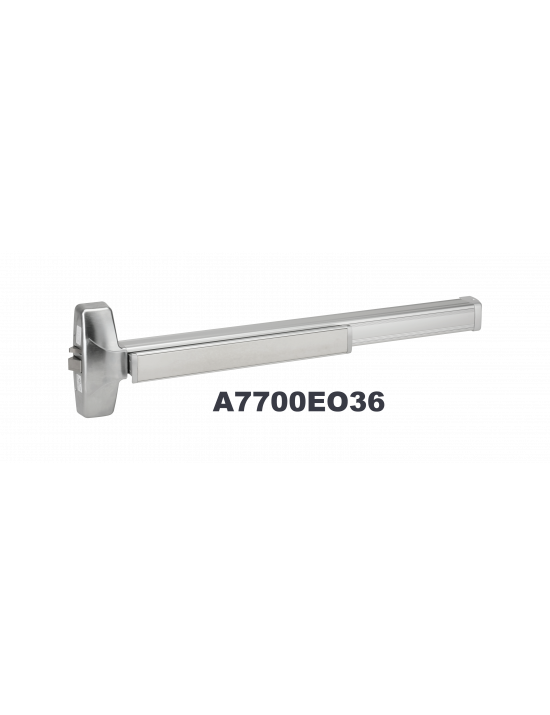

A7700 & AF7700 Rim Type Panic and Fire Exit Devices (ADA)
•ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
•Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
•Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
•Trims are thru bolted for additional security.
•Conforms & Meets ADA Regulations.
•Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
•UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
•UL Listed for Fire Exit Hardware. 3 hours.
•(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
•Uncompromising security and safety in single and double fire exit doors.
•Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
•Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.
| Finish | Architectural plated finishes. |
|---|---|
| Size | DIMENSIONS
Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Center case 8 1/16” x 2 ¾” x 2 ½” (205 mm x 70 mm x 63 mm) MODEL ACTUAL LENGTH MAX CUT DOWN DOOR SIZE |
| Part Number | A7700 & AF7700 Series |
| Fire-Rated | UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours. |
| Mounting | Furnished with wood and machine screws. Available thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices. |
| Usage | Rim Type Panic and Fire Exit Devices (ADA) |
| ANSI/BHMA Standard | ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs. |
| Handing | Non-handed, center hub for 2 3/4″ backset. |
| Latchbolt | Stainless steel ¾” throw with an anti-pick feature. |
| ADA Compliance | Americans with Disability Act (ADA) compliant. 5lbs opening force on ADA product only |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. |
| Mechanism Case | Chassis – Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade). Cover – Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out. |
| Warranty | Lifetime Warranty |
