98-3PT & F98-3PT Series

In Stock

98-3PT & F98-3PT Series

Usually Ships: 3-5 Business Days

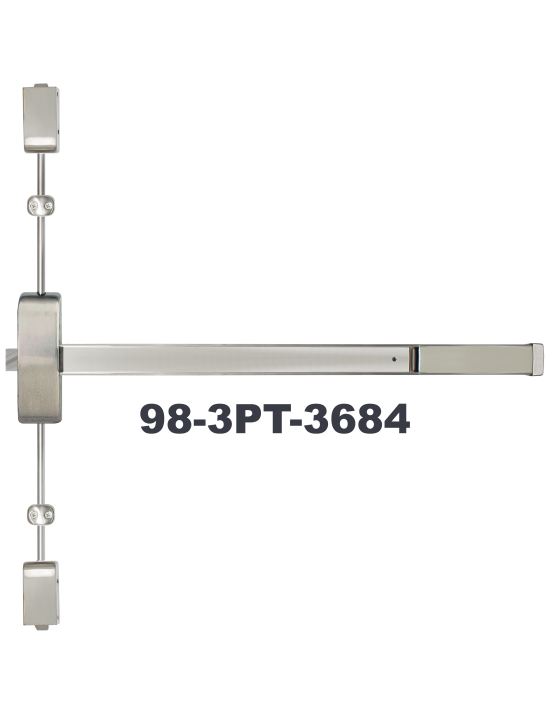

GRADE 1 Surface Vertical Rod, Three-Point Latching Exit Device

•ANSI A156.3, GRADE 1 heavy duty exit device
•UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
•UL Listed for Fire Exit Hardware. 3 hours.

Finish	L1 Black, Us10b, Us32d

Finish	US32D, US10B, L1 Black
Size	DIMENSIONS Touch bar height to finished floor 41” (1041 mm) at center Touch bar projection Neutral 2 ⅝” (67 mm) Depressed 1 ⅞” (48 mm) Center case 8” x 2 ¾” x 2 ¼” (203 mm x 70 mm x 57 mm) Panic grade top & bottom latch case 4” x 2” x 1 13/16” (102 mm x 51 mm x 46 mm) Fire grade top & bottom latch case 4” x 2” x 1 13/16” (102 mm x 51 mm x 46 mm) Top and bottom rod length for 36” x 84” doors: Top rod 37 ⅞” (962 mm), bottom rod 34 ⅞” (886 mm) Top and bottom rod length for 48” x 96” doors: Top rod 37 ⅞” + 12” ETR (1267 mm), bottom rod 34 ⅞” (886 mm) Vertical rods 15/32” (11.9 mm) round tubing MODEL ACTUAL SIZE MAX CUT DOWN DOOR SIZE PUSH BAR LENGTH 98-3PT-3684, F98-3PT-3684 – 32” actual, 6” max cut down, 30” to 36” door width, 21” push bar length 98-3PT-4896, F98-3PT-4896 – 44” actual, 12” max cut down, 36” to 48” door width, 26” push bar length
Part Number	98-3PT & F98-3PT Series
Fire-Rated	UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours.
Mounting	Furnished with wood and machine screws. Thru-Bolts are included and standard packaging on fire rated devices.
Usage	GRADE 1 Surface Vertical Rod, Three-Point Latching Exit Device
ANSI/BHMA Standard	ANSI A156.3, GRADE 1 heavy duty exit device
Handing	Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience.
Latchbolt	Stainless Steel S304 material; Top and Bottom Bolt: ⅝” throw, Rim Bolt: ¾” throw
Dogging Feature	Allen-type key furnished standard on non-fire labeled devices
Mechanism Case	Top & Bottom Chassis – Steel material for Panic and Fire Grade. Cover – Aluminum, Zinc, Steel or Stainless Steel S304 material. Covers stock hollow metal doors with 161 cut out.
Warranty	Lifetime Warranty
