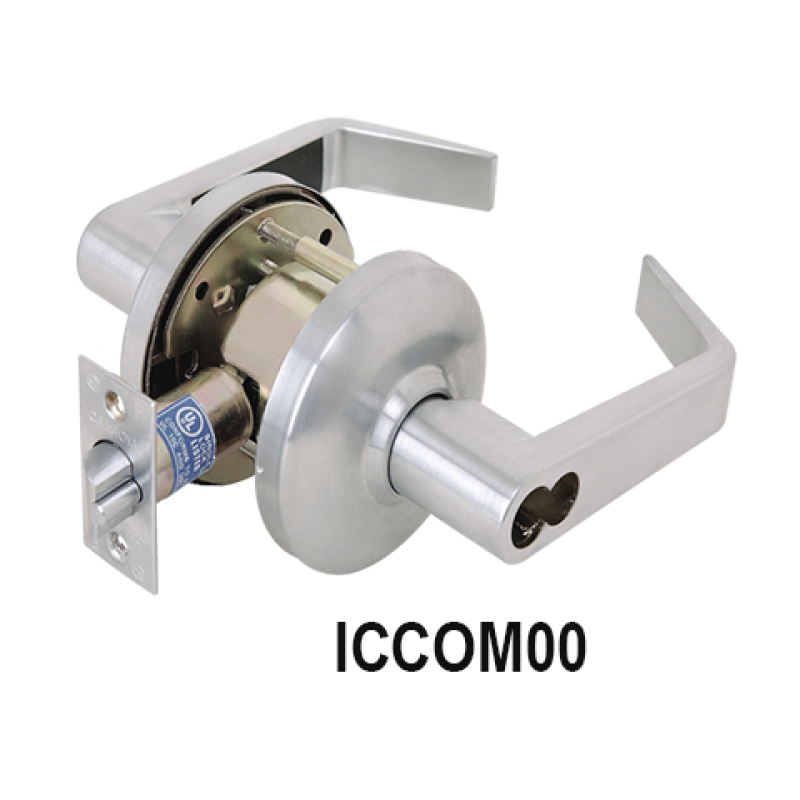

Heavy Duty Cylindrical Leversets, Clutch Mechanism Optional thru Bolt Installation
•BHMA / ANSI A156.2 Series 4000, Heavy Duty, Barrier Free, GRADE 2
•Lifetime Warranty
•UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
•Clutch System, free turning handle when locked to deter breaking of the handle
•Optional thru bolt installation
•Coil compression springs provide great strength and durability
•Accepts Schlage full size format OEM IC Core cylinder with Interchangeable Core
•Optional Tactile and Lead Lining
•Meets the Buy American Act
| Finish | Polished Brass, Satin Brass, Antique Brass, Satin Bronze, Oil Rubbed Bronze, Satin Nickel, Polished Chrome, Satin Chrome |
|---|---|
| Part Number | ICCOM00 |
| Fire-Rated | UL Listed 3 hour rated , UL10C, UBC7-2-1997 |
| Usage | Lock |
| Device Type | Lock |
| Function | Lock |
| ANSI/BHMA Standard | BHMA/ANSI A156.2 |
| Latchbolt | ½” Throw solid brass, reversible for RH or LH applications. UL Listed |
| Trim | Wrought brass, bronze, or stainless steel, levers are Zinc casting, plated to match trim finish. |
| ADA Compliance | Meets ADA Compliance |
| Warranty | Lifetime |
